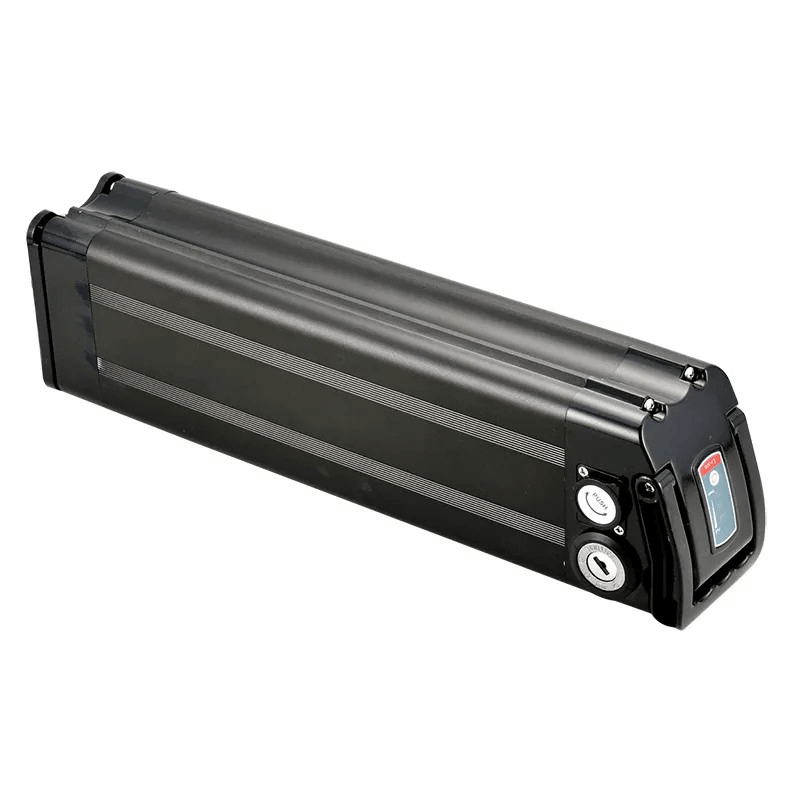

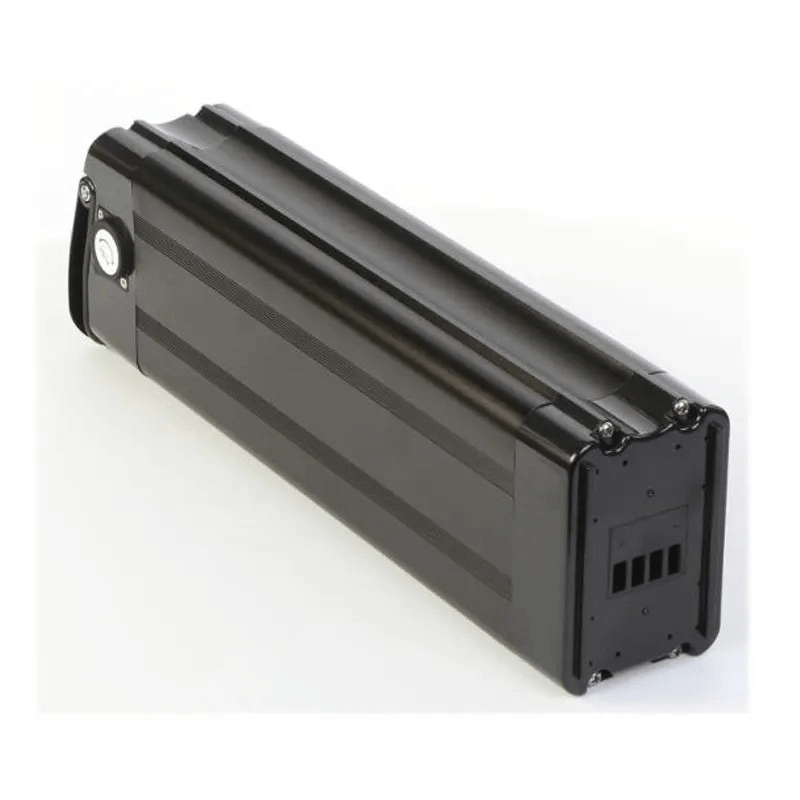

Rechargeable 48V 20Ah 1000W Silver Fish Lithium Battery Pack

2025-02-28 06:17

Спецификација

СтавкаПараметри
Номинални напон48В
Номинални капацитет20Ah(can be customized)
БМС20A (can be customized)
Пражњењеnormal current
Max continuous current2C (≤5min)
cut-off voltage35.7V
Discharge portbottom discharge, with 2pin plug
(4pin plug/top discharge is available, please leave remarks if need)
Напунитиnormal charge current0.5Ц
Режим пуњењаCC/CV with professional charger
cut-off voltage54.6±0.1V
Charge portXLR (DC5521, Lotus is available, please leave remarks or contact us while the order been placed)
Унутрашњи отпор≤80мΩ
Discharging Inner resistance
Цхарге Температуре0℃~+45℃When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.
Температура пражњења-20℃~+60℃
Распон влажностиRH≤85%
Функција заштитеOver charge protection,Over discharge protection,Over current protection,Balanced function
Схелл МатериалAluminum alloy
Тежина6,5±0,1 кг
Димензије (Д*Ш*В)495*110*75(mm)
Живот у циклусуStandard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500 cycles.( capacity retention rate≥80%)

Карактеристике

* Longer life compared to Lead-Acid battery
* Over-Charging safety protection
* 60% more energy
* Over-Discharging safety protection
* Up to 70% weight savings
* Over-Current safety protection
* Easy to install and remove

* Short Circuit safety protection
* Faster charging times
*High Temperature safety protection
*100% available capacity
*Built-in safety protection BMS
* No fire, No explosions
*Eco-friendly, no pollution

Наша фабрика

Зашто изабрати нас

15+ years experience
Our R&D team has focused on power solutions and batteries customization for already 15 years by provided battery packs for the world famous companies in the field.
Quality guarantee
All batteries are produced according to the strictest industry standards. we've cooperated with brand cells like Samsung, LG, Panasonic, etc for all battery packs.
Worldwide after-sales service
Wherever you are we try the best to response to your complaints at the first time. and we provide full 12 months warranty after ex-factory.

Паковање и испорука

ФАК

1,Q: What's the main product?

A: Power Wall Bank,Portable power supply,Lithium battery cell,charger,Golf cart batteries

2, П: Шта је прекомерно пуњење?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current then charge to 0.01C at CV mode. Observe changes in battery appearance.

3, П: Шта је прекомерно пражњење?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C.Observe changes in battery appearance

4, П: Могу ли добити наруџбину за узорак?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require

5, П: Да ли имате МОК ограничење?

О: Да, имамо МОК ограничење за масовну производњу, али то зависи од модела батерије. Молимо контактирајте нас за детаље.

6, П: Шта кажете на време испоруке?

A: Samples will takes 5-7 business days. Mass production will takes 25-30 days.It depends on quantity.

7, П: Шта кажете на време испоруке и испоруке?

A: Generally, battery will be shipped via Express,such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service. delivery time is 11-15 business days. Airline and sea shipping also available.

8, П: Шта је са услугом након продаје?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions. Welcome to contact us for samples testing Orders.

Белешка: Ми смо произвођач батерија. Сви производи не подржавају малопродају, ми радимо само Б2Б пословање. Контактирајте нас за цене производа!
