Спецификација
Номинални напон | 72В |
Номинални капацитет | 50Ах |
Унутрашњи отпор | ≤220мΩ |
Живот у циклусу | 2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod |
End of charge Voltage | 14.6В |
End of charge Current | 100мА |
Max.Continuous charge current | 50А |
Начин наплате | 0.2C (0.5A) CC/CV |
End of discharge Voltage | 9.2В |
Max. Pluse Discharge Current | 50A/10S |
Charge Temp | 0 ~ 45 ℃ |
Discharge Temp | -10~55℃ |
Storage Temp | -10 ~ 45 ℃ |
Dimension(D×W×H) | 332*170*220mm |
Тежина | ≤20Kg |
Уграђен аутоматски систем за заштиту батерије | да |
Charge plugs and Discharge connectors optional
1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

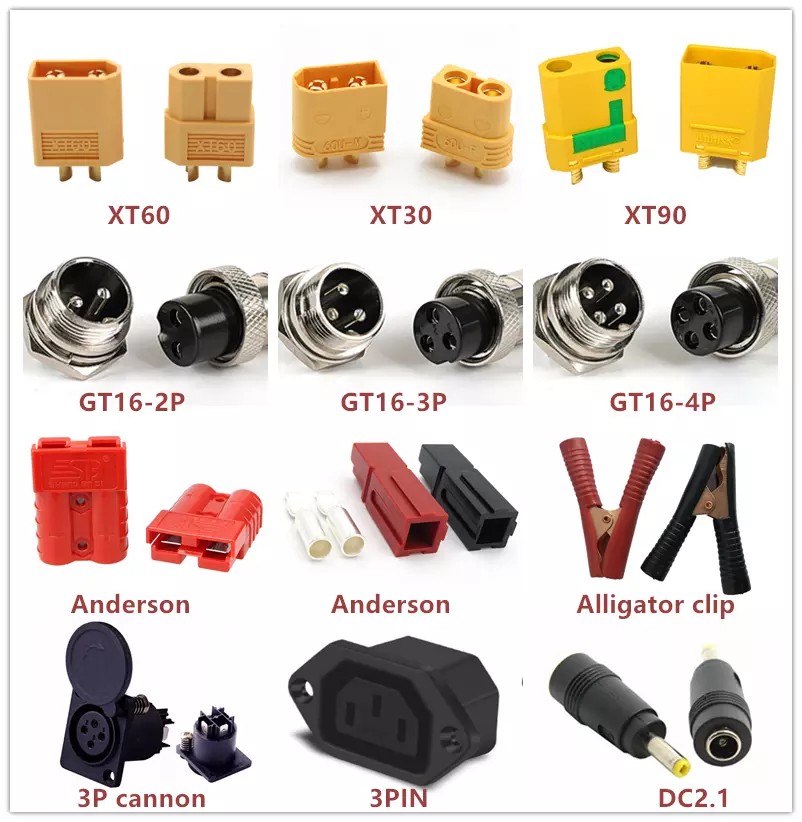

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.
Карактеристике
1.Lighter weight, smaller size
2.High temperature performance
3.Extremely safe, no explosion, no fire under collision
4. Снажни отпор на прекомерно пражњење и задржавање набоја
5.Strong charging acceptance and quick-charging capability
6.Maintenance-free and no acid or water for maintenance in usage
7.Large capability and long life for all high power output applications
8.Environmentally friendly non-toxic, non-contaminating, no rare metal.
9.Low self-discharge and good discharge performance at low temperature
10.Excellent large current discharge performance especially in startup and climbing
ОЕМ
We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.
Апликација
Апликације
* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided
Наша фабрика
ФАК
1, П: Шта је главни производ у АИН-у?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2, П: Шта је прекомерно пуњење?
О: Након пуњења, тестирајте почетно стање и капацитет батерија. Напуните до 10.0В при струји од 3Ц, а затим пуните до 0.01Ц у ЦВ режиму.
Посматрајте промене у изгледу батерије.
3, П: Шта је прекомерно пражњење?
О: Након пуњења, тестирајте почетно стање батерија. Када су батерије нормалне, испразните се на 0В на 0,5Ц. Посматрајте промене у
изглед батерије.
4. П: Могу ли добити наруџбу за узорак?
О: Да, прихватамо узорак за тестирање и проверу квалитета. Батерије се могу правити по потреби.
5. П: Да ли имате МОК ограничење?
О: Да, имамо МОК ограничење за масовну производњу, али то зависи од модела батерије. Молимо контактирајте нас за детаље.
6. П: Шта кажете на време испоруке?
О: Узорци ће трајати 5-7 радних дана. Масовна производња траје 25-30 дана. Зависи од количине.
7. П: Шта кажете на време испоруке и испоруке?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. П: Шта је са услугом након продаје?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
