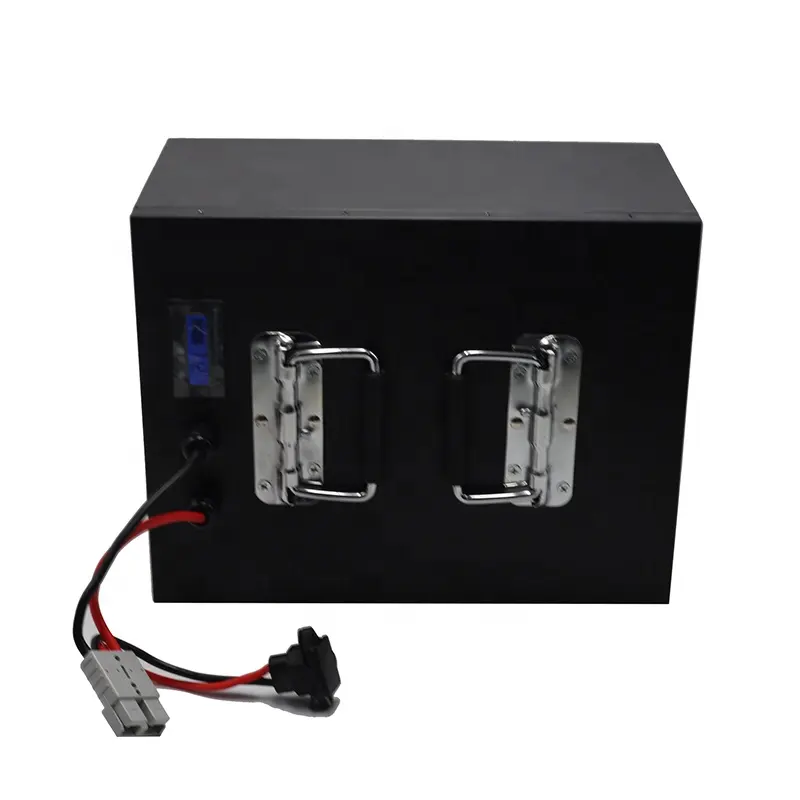

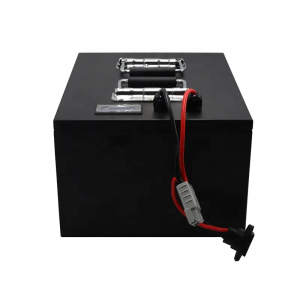

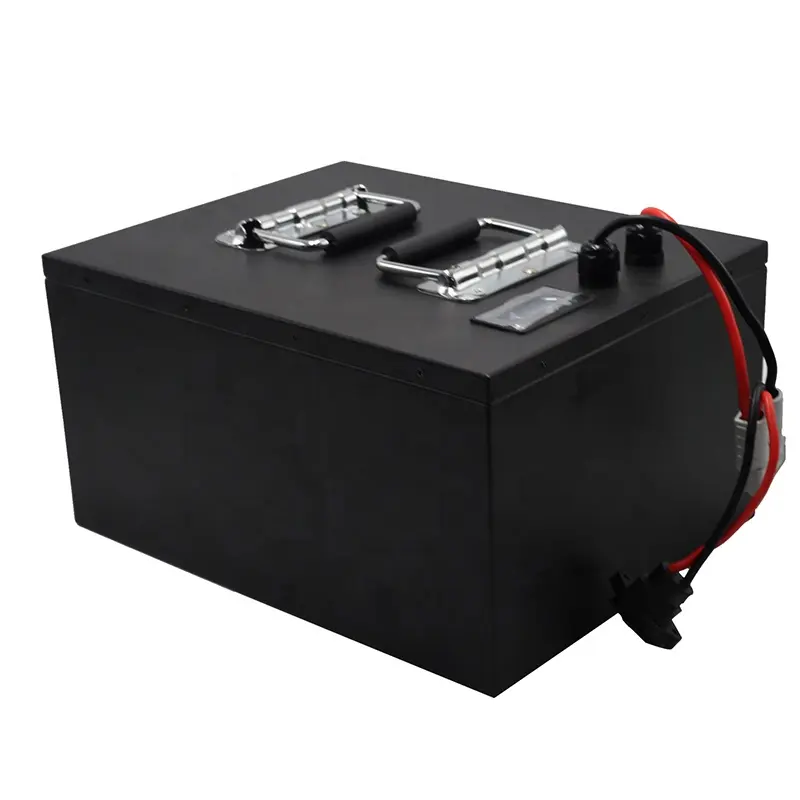

Прилагођена ЛиФеПО4 батерија 72в 60ах батерија за електрична возила литијум јонски пакет за ЕВ аутомобиле

2023-06-06 02:13

Спецификација

Марка	УЦЕЛО
Модел	AIN7260
Гаранција	5 година
Номинални напон	76.8V
Номинални капацитет	[email protected]/customize
Енергија	4416Wh
Унутрашњи отпор	≤50мΩ
Живот у циклусу	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Самопражњење	≤3,5% месечно на 25 ℃
Максимални напон пуњења	87.6 V
Режим пуњења	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Пуњење струје	30А
Максимална струја пуњења	60А
Пражњење струје	30А
Max. discharge Continuous Current	60А
Мак.пулсна струја	120A(<3S）
Испуштање граничног напона	60В
Цхарге Температуре	0 ℃ до 45 ℃ (32 ℉ до 113 ℉) @ 60 ± 25% релативне влажности
Температура пражњења	-20 ℃ до 60 ℃ (-4 ℉ до 140 ℉) @ 60 ± 25% релативне влажности
Температура складиштења	0 ℃ до 45 ℃ (32 ℉ до 113 ℉) @ 60 ± 25% релативне влажности
Отпорност на водену прашину	ИП55
Ћелија и формат	LFP  60AH 24S1P/customize
Кућиште	Metal Case
Димензија (Д * Ш * В * ТХ)	прилагоди
Тежина	50kg
Терминал	M6 or Anderson or another bolt screw
Peak discharge current BMS	60А
High temp port. Low temp port.	over charge port. over discharge port.
Начин пуњења	ЦЦ / ЦВ
Terminal Type	M6 or Anderson or another bolt screw/customize
Потврда	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Подсетник

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Апликација

Наша фабрика

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Паковање и испорука

Паковање

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

поштарина

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



ФАК

П: Како да платим? Које начине плаћања прихватате?
A: T/T, PayPal, Western Union.

П: Да ли је поруџбина узорка прихватљива?
О: Да, за већину батерија узорци поруџбина за испитивање квалитета су разумни и прихватљиви.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. За оштећења настала, као што је испупчење/заваривање батерије, комплет батерија без заштите БМС узрокована пуњењем.
